Concaver
CVR2
Distinctive appearance and rich finish make Concaver CVR2 Wheel an ideal proposition for customers who want their cars to radiate sportiness. The multi-layer surface of the Wheel gives it depth and character not many alternatives can rival. Available in 19", 20", 21", 22" Wheel sizes. Contact us for more information.
CVR1 TECHNICAL SPECIFICATION
CONCAVE PROFILE WHEEL SIZE OFFSET RANGE MAX LOAD SUGGESTED RETAIL PRICE BOLT PATTERN PERFORMANCE 19 x 8,5 20 - 45 725 KG 400 EUR ALL PCD`S BETWEEN 5x108 - 5x120 DEEP 19 x 9,5 20 - 45 725 KG 450 EUR ALL PCD`S BETWEEN 5x108 - 5x120 CONCAVE PROFILE WHEEL SIZE OFFSET RANGE MAX LOAD SUGGESTED RETAIL PRICE BOLT PATTERN PERFORMANCE 20 x 8,5 20 - 45 760 KG 500 EUR ALL PCD`S BETWEEN 5x108 - 5x120 PERFORMANCE 20 x 9 20 - 51 760 KG 525 EUR ALL PCD`S BETWEEN 5x108 - 5x120 MID 20 x 9,5 22 - 40 760 KG 550 EUR ALL PCD`S BETWEEN 5x108 - 5x120 MID 20 x 10 20 - 48 760 KG 575 EUR ALL PCD`S BETWEEN 5x108 - 5x120 DEEP 20 x 10,5 15 - 43 760 KG 600 EUR ALL PCD`S BETWEEN 5x108 - 5x120 EXTREME 20 x 11 0 - 30 760 KG 625 EUR ALL PCD`S BETWEEN 5x108 - 5x120 DEEP 20 x 12 32 - 60 760 KG 675 EUR ALL PCD`S BETWEEN 5x108 - 5x120 CONCAVE PROFILE WHEEL SIZE OFFSET RANGE MAX LOAD SUGGESTED RETAIL PRICE BOLT PATTERN PERFORMANCE 21 x 9 10 - 52 800 KG 600 EUR ALL PCD`S BETWEEN 5x108 - 5x130 PERFORMANCE 21 x 9,5 14 - 58 800 KG 625 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 21 x 9,5 0 - 35 800 KG 625 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 21 x 10,5 10 - 46 800 KG 675 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 21 x 11 11 - 52 800 KG 700 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 21 x 11,5 17 - 58 800 KG 725 EUR ALL PCD`S BETWEEN 5x108 - 5x130 CONCAVE PROFILE WHEEL SIZE OFFSET RANGE MAX LOAD SUGGESTED RETAIL PRICE BOLT PATTERN PERFORMANCE 22 x 9 10 - 52 980 KG 700 EUR ALL PCD`S BETWEEN 5x108 - 5x130 PERFORMANCE 22 x 9,5 14 - 58 980 KG 725 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 22 x 9,5 0 - 35 980 KG 725 EUR ALL PCD`S BETWEEN 5x108 - 5x130 PERFORMANCE 22 x 10 20 - 64 980 KG 750 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 22 x 10,5 10 - 46 980 KG 775 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 22 x 11 11 - 52 980 KG 800 EUR ALL PCD`S BETWEEN 5x108 - 5x130 DEEP 22 x 11,5 17 - 58 980 KG 825 EUR ALL PCD`S BETWEEN 5x108 - 5x130 Depending on the exact model and size, between 2 to 4 unique face profiles are available (from Performance to Extreme Concave), in different widths. This allows us to offer wheels for cars from nearly every segment.

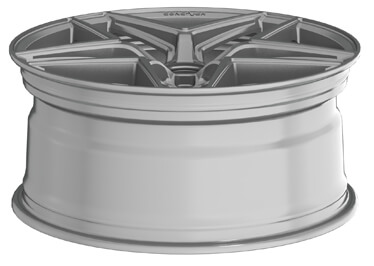

PERFORMANCE CONCAVE
The least concave profile in our offer, designed for maximum brake clearance, which makes it appropriate even for larger brakes of top-quality supercars.

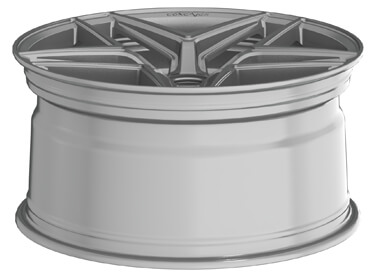

MID CONCAVE
The middle ground between the near-flat wheels and deep concave wheels. Our Mid Concave profile is an ideal choice for those clients who are looking for the balance between subtlety and dynamism.

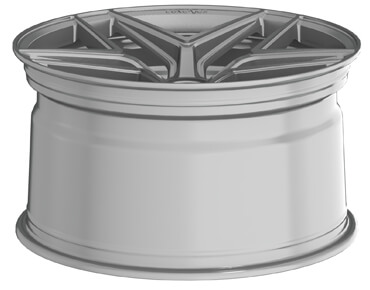

DEEP CONCAVE
Deep Concave wheels are targeted at customers who want to give their car a dynamic and aggressive character. It’s the perfect choice for those of you want to fit in with the latest automotive trends.

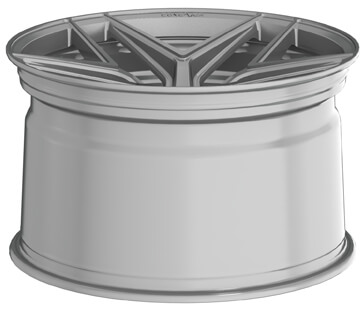

EXTREME CONCAVE
The most dynamic of our profiles, Extreme Concave, will give your car a unique, sporty and aggressive character, without compromising on elegance and stylish appeal.
HYBRID FORGED PROCESS
STEP I
Mounting of a specially prepared cast face to flow-forming drum and applying extensive heat.
STEP II
High-pressure rollers move down the barrel while applying pressure, stretching the wheel as a result.
STEP III
The process continues until the desired width and density of the barrel are acquired.
STEP IV
By compressing the properties of the wheel, we achieve a wheel that is lighter and yet offers a higher impact tolerance.
Available Wheel Finishes

Brushed Bronze

Brushed Titanium

Carbon Graphite

Platinum Black
